Coquette 39

GRP, timber or plywood sloop

Coquette 39 round bilge or multi-chine boat plans

~ Round bilge GRP or timber

~ Multi-chine plywood

~ Outboard rudder

~ Masthead rig

~ Easily driven fast cruiser

~ Coastal or tradewind cruiser
MENU
Home
Overview
Email
Designs
Materials
Articles
Testimonials
Bookstore

PRICES

ORDERS
Fax/Mail
Credit Card

LINKS
Boat Sites
Communities
General

TRANSLATE
This boat was designed to be a fast cruising yacht which can be built at a reasonable price. She can be built from plywood with a multi-chine hull with radiused topside chine or from cold moulded timber, GRP or sandwich GRP with a round bilge hull.

She is very easily driven, with long waterline,narrow beam, shallow canoebody, fine bow and flat stern sections. Bow sections are well flared for dryness and reserve buoyancy while beam is carried well into the ends to enhance stability and offwind control. Despite being over 39 feet (or over 41 feet with the optional planing boards) and tiller steered, she is a delight to helm on all points of sail.

Timber construction uses longitudinal framing over widely spaced bulkheads and frames to give an easily built and fair hull. Keel loads are carried by bulkheads and laminated floors. GRP one-off construction is with either C-Flex or "Airex" cored GRP, built over a male mould and using standard detailing for those methods of construction.

Coquette 39 round bilge or multi-chine boat plans

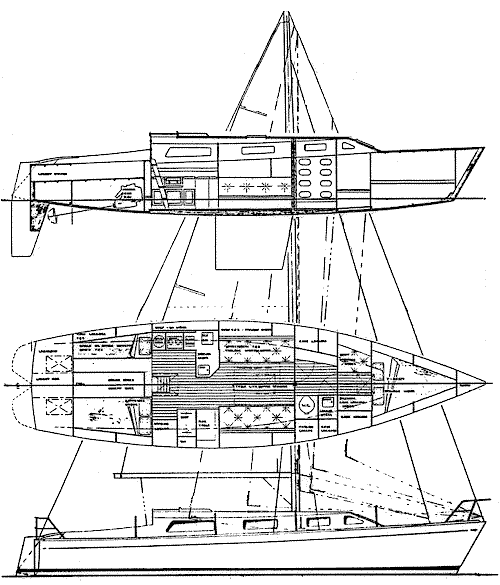

The interior is laid out to be comfortable for a maximum of four for long passages or six for short cruises, without using the saloon settees as berths.All berths are 2m (6'7") long with the exception of the forward berths which are 2.2m (7'2"). The quarter berths can be built as two singles, two doubles or one of each.

The saloon is traditional layout with opposing settees, folding table between and outboard stowage. Aft of that, the L-shape galley has plenty of stowage and work surfaces while the sit-down nav station is simple but practical. The large head compartment separates the saloon from the forecabin and has room for a comfortable shower.

Coquette 39 round bilge or multi-chine boat plans

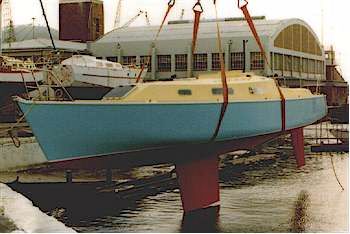

"Galatea" launch

The engine is under the cockpit sole, along with fuel tankage of 150 litres (55 US gals). Water tankage of 300 litres (110 US gals) is under the settees.

A masthead sloop sail plan of fairly modest proportions powers her, but she does not need a big rig. A removable inner forestay allows her to be sailed as a cutter for medium to heavy windward work or reaching in all strengths. The high placement of the inner forestay on the mast eliminates the need for runners and gives a more efficient double slot for most of the mast height.

As a shorthanded cruiser, Coquette is a fast passagemaker and gives her crew exhilirating sailing. With her, the sailing is the fun part of cruising. For a smaller boat of similar concept, see the CW975.

Follow these links to the stability curve and the list of drawings for this design.

Testimonial from Leigh Ross - Owner of COQUETTE 39 "Galatea", built in Cape Town but now based on Chesapeake Bay.

"Had a lovely trip over. (Cape Town to St Helena Island) Best speed 17.6 knots, best run 215 miles, took just under 11 days. (to cover 1700 miles, the record then being 10 days) Fine cruising yacht, hand steering 6 hours straight no problem. Thanks for the nice boat."

CHARACTERISTICS

LOA - 12.00m (39'4")

LWL 11.20m (36'9")

Beam 3.30m (10'10")

Draft 1.85m (6'1")

Displacement 5870kg (12937lb)

Ballast 2425kg (5345lb)

Area Waterplane 20.7sq.m (223sq.ft)

Immersion Rate 212kg/cm (1187lb/inch)

Wetted Surface 23.39sq.m (252sq.ft)

Fineness Coef 0.66

Block Coef 0.42

Prismatic Coef 0.61

Displacement/Length 116

Sail Area (Main + Fore-triangle) 62.2sq.m (670sq.ft)

Sail Area/Wetted Surface 2.0

Sail Area/Displ 19.3

Righting Moment @ 30 deg 4154 kgm (30046ft.lb)

Righting Moment @ 60 deg 5704 kgm (41257ft.lb)

Righting Moment @ 90 deg 4492 kgm (32491ft.lb)

Powering 20-30hp inboard diesel

Please note that our plan prices include for adding imperial measurements to our metric designs if needed by the buyer.
