Building the Paper Jet
Page 1

Build Photos 2
Sailing Photos
Return to Paper Jet

This series of photos shows the basics of constructing the Paper Jet. The 50-page instruction manual that is supplied with the plans include 200 photos, illustrating every aspect of construction.

Paper Jet plywood boat kits

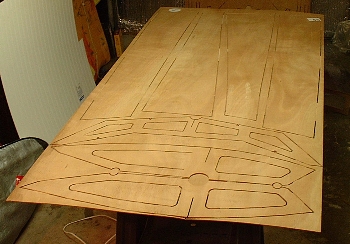

One of the plywood sheets, with the components pre-cut but held in the sheet by tabs.

Paper Jet plywood boat kits

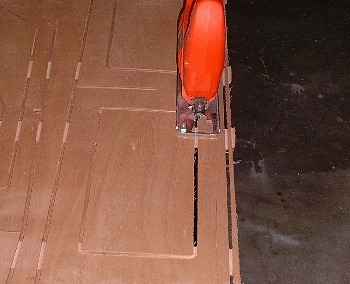

Cutting through the tabs with a jigsaw, to release the components.

Paper Jet plywood boat kits

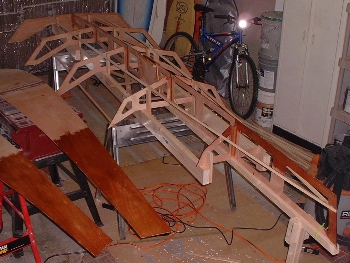

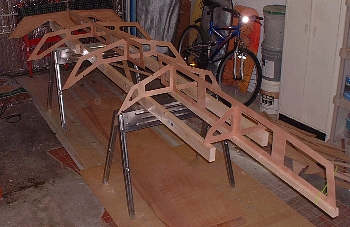

Interlocking ladder frame structure set up on building stocks.

Paper Jet plywood boat kits

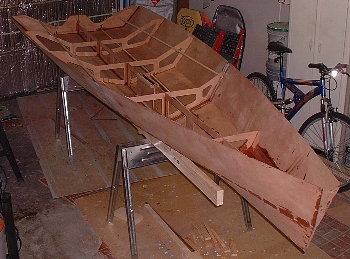

Framing complete, ready for hull skin.

Paper Jet plywood boat kits

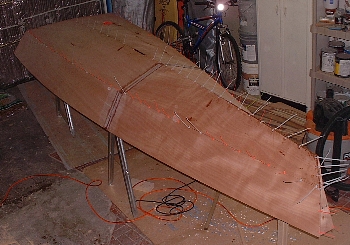

Hull skin fitted.

Paper Jet plywood boat kits

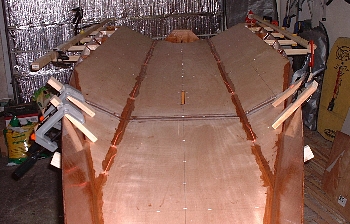

Hull released from building stocks.

Paper Jet plywood boat kits

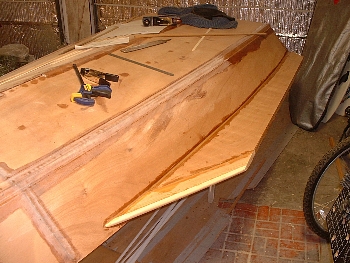

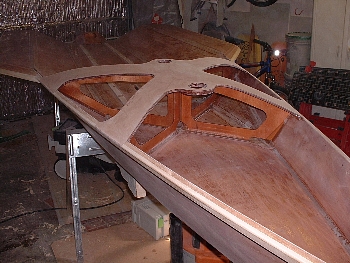

Deck and wing framing in progress.

Paper Jet plywood boat kits

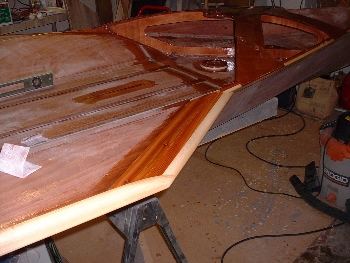

Seams taped and wing nearing completion.

Paper Jet plywood boat kits

Mast support structure, formed from interlocking frames and beam components.

Paper Jet plywood boat kits

Completed mast support structure, mast steps and wings.

Paper Jet plywood boat kits

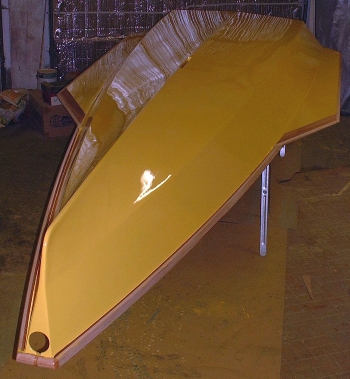

Hull painted.

Paper Jet plywood boat kits

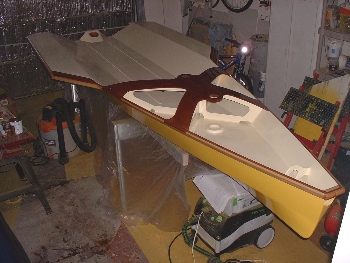

Deck painted and varnished for contrast.
