DUDLEY DIX YACHT DESIGN

Lynnhaven 16

Plywood Touring Canoe

Lynnhaven 16 stitch & glue plywood canoe plans

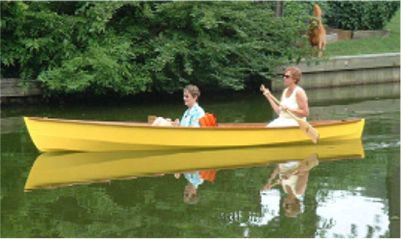

Prototype of the Lynnhaven 16

~ Attractive and capable touring canoe

~ 1-3 Person capacity

~ Paddle as a canoe

~ Fit rowlocks and oars for a small pulling boat

~ Integral buoyancy/storage in seats

~ Easy amateur build

~ Ideal school or family project

~ Plans include full size patterns

~ Illustrated step-by-step instructions

MENU
Home
Overview
Email
Designs
Materials
Articles
Testimonials
Bookstore

PRICES

ORDERS
Fax/Mail
Credit Card

LINKS
Boat Sites
Communities
General

TRANSLATE

Lynnhaven 16 plywood canoe plans

The Lynnhaven 16 is designed for those who want a family fun boat that they can build themselves. I built the prototype in 3 weeks of weekends and evenings, total less than 100 hours of single-handed work.

This is about as much boat as can be built from 3 sheets of plywood, with very little scrap left at the end of the project. I built the prototype from 6mm (1/4") plywood, which produced a robust boat but a bit heavy at 32kg (70lb). It can be built from 3mm (1/8") plywood to about 20kg (45lb) or anything between.

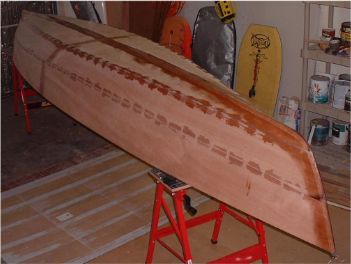

Construction is stitch-&-glue, so it is suitable as a first time boatbuilding project. The plans include full size paper patterns showing every plywood component, nested for marking straight onto the plywood sheets. A set of step-by-step instructions is also supplied, including more than 40 colour photos of the entire building process.

The Lynnhaven 16 is suitable for exploring your local rivers and lakes, or it can be car-topped across the country for camp cruising waters far away.

Pre-cut plywood kits will soon be available from suppliers in various countries.

Lynnhaven 16 stitch & glue plywood canoe plans

Lynnhaven 16 stitch & glue plywood canoe plans

Follow this link to print a material list for this design. You will also find answers to questions about construction in our FAQ pages.

CHARACTERISTICS

LOA 4.70m (15'5")

Beam 0.9m (3'0")

Weight 20-32kg (45-70lb)

Plan Prices (includes full size paper patterns)

US$85 Order now
Shipping $10 North America, $30 elsewhere


This design is drawn in metric and has both metric and inch dimensions added.
