Dix 43HD
Radius chine steel cutter

Dix 43 radius chine steel boat plans

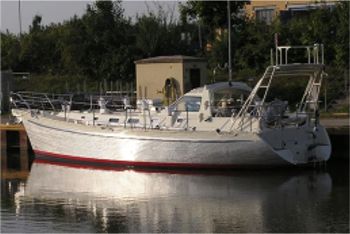

"Tana Vika", hull #1 to the Dix 43HD, launched by
Nereide Yachting in Czech Republic.

This variation of our popular Dix 43 cruiser design is detailed only for aluminium at present. Email Dudley if you want this one in steel.

It features a trunk cabin deck, aft cockpit and fixed dodger.

Cutting files for aluminium available. See our kits page.

Flickr Album

MENU
Home
Overview
Email
Designs
Materials
Articles
Testimonials
Bookstore

PRICES

ORDERS
Fax/Mail
Credit Card

LINKS
Boat Sites
Communities
General

TRANSLATE
This version was commissioned by a British couple, modifying the basic Dix 43 design to match their thoughts for an ideal blue water cruiser. From the outset this one was to be built from cutting files, which were commissioned by our client from Alumar, who have also done cutting files for some of our other designs.

Construction of the first boat is aluminium, designed to the ABS scantling rules for ocean racing yachts. Steel is also possible but will need the cutting files to be modified to suit the thinner plates that will be used.

Dix 43 steel radius chine boat plans

Our client drew his own interior layout for his boat. The standard layouts from the standard version of the Dix 43 will work, with some minor modifications. The trunk cabin allows a 50mm (2") gain in headroom despite a 50mm (2") increase in bilge depth due to a higher cabin sole.

Dix 43 radius chine steel boat plans

Dix 43 radius chine steel boat plans

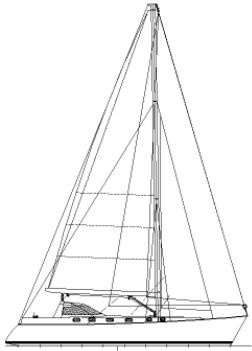

The double spreader marconi mast is stepped further forward than in the other versions. This makes her rig proportions more like a double-headsail sloop rather than the true cutter rig of the other versions.

For the other versions of this design, see the Dix 43 and Dix 43 Pilot.

Dix 43 radius chine steel boat plans

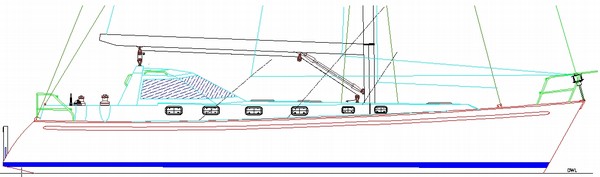

Dix 43HD profile

CHARACTERISTICS

< /TR>

LOA - 13.35m (43'10")

LWL 11.87m (38'11")

Beam 4.10m (13'5")

Draft 1.80m (5'11")

Displacement 14300kg (31517lb)

Ballast 5500kg (12122lb)

Area Waterplane 28.65sq.m (308sq.ft)

Immersion Rate 293kg/cm (1640lb/inch)

Wetted Surface 46.77sq.m (503sq.ft)

Fineness Coef 0.67

Block Coef 0.41

Prismatic Coef 0.59

Displacement/Length 238

Sail Area (Main + Fore-triangle) 90.09sq.m (970sq.ft)

Sail Area/Wetted Surface 1.93

Sail Area/Displ 15.5

Headroom 1.94m (6' 4")

Masthead above DWL 19.125m (62' 9")

Please note that our plan prices include for adding imperial measurements to our metric designs if needed by the buyer.
