DUDLEY DIX YACHT DESIGN

Argie 15
Plywood Sailing Dinghy

Argie 15 stitch & glue plywood boat plans
Argie 15 built by Nick Fairley in Cape Town.
See a video of his maiden sail.

~ Attractive & versatile , Argie 15 offers fun for the whole family.

~ Multi-purpose, can be rowed, motored or sailed, space for camp-cruising on lakes and rivers.

~ Simple stitch and glue method, build with minimum of tools, no previous boatbuilding experience & little space.

~ Step-by-step instructions included in plans.

~ Ideal quality time project for Dad with Junior's help or practical winter project to fight off cabin fever.

~ Build as a school project then use for training young sailors in the school sailing club.

~ Built-in flotation compartments & simple sail plan make her great for learning to sail at any age.

~ Drawings include optional full-length side seats.

~ Optional full size paper patterns available.

~ Kit suppliers in USA & elsewhere

~ Epoxy kits in USA

~ See Argie 15 amateur project photos

~ Building & Sailing videos

MENU
Home
Overview
Email
Designs
Materials
Articles
Testimonials
Bookstore

PRICES

ORDERS
Fax/Mail
Credit Card

LINKS
Boat Sites
Communities
General

TRANSLATE

Argie 15 stitch & glue plywood boat plans

The ARGIE 15 was designed to be a versatile family fun boat. Essentially a 3 in 1 dinghy, she can be rowed, sailed or powered by an outboard motor of up to 7,5kw output. She is more than the normal 3 in 1 dinghy in that it was considered from the start that she may be used as a camp cruiser. Most dinghies have no areas long enough for an adult to stretch out full length for sleeping but the ARGIE 15 has 1,9m of clear length, sufficient for most people. The addition of removable slatted floorboards to your boat will lift you out of any water lying in the bottom while sleeping. A canvas or plastic sheet over the boom and tied to eyes along the gunwhales will give protection from the elements. The result is a minimum cruiser for use on protected waters.

She has also been designed to make maximum use of the advantages of plywood to give a light and easily managed boat which is well within the capabilities of the average DIY enthusiast. The construction method used is stitch and glue which eliminates most of the framing normally used in boat construction and results in very light structural weight. The weight of a completed hull is approximately 60kg, making her suitable for car topping on extended roof racks. She will, however be more easily handled with a trailer.

Argie 15 stitch & glue plywood boat plans

Argie 15 stitch & glue plywood boat plans

By normal dinghy standards, the mast is robust and fairly heavy. This is because the sailing rig has been designed to be uncomplicated to set up and easy to control, using a minimum of fittings. The mast tube comes from one extrusion, cut in half so as to fit inside the hull for storage.

The whole concept of the ARGIE 15 is simplicity, both in construction and use. For those wanting to customise their boats to suit their own use, there are numerous possibilities. These include floor boards, customised tent, foot straps and extending the side seats right round the hull (these are not covered in the drawings). As drawn, she is about as much boat as can come from six sheets of plywood. The extension of the side seats will need an additional sheet and will limit the sleeping width a bit. However, the extra bouyancy which results will make for easier righting in the event of a capsize and make her more comfortable for sailing.

The ARGIE 15 is a good family construction project, with surprisingly good sailing performance and the ability to take a lumpy sea. It has also been built with thicker plywood to produce a robust little boat for small scale commercial fishing or working lobster traps.

If the Argie 15 is too large for you, look at the Dixi Dinghy and Argie 10 stitch and glue dinghies. If you are looking for a smaller yet more challenging project, see the Challenger 13 lapstrake dinghy.

Read an independent review of the Argie 15.

Follow this link to print or download a material list for this design. You will also find answers to questions about construction in our FAQ pages.

Argie 15 stitch & glue plywood boat plans

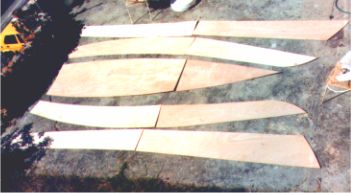

Argie 15 hull skin panels

CHARACTERISTICS

LOA 4.70m (15'5")

Beam 1.83m (6'0")

Draft 0.13/0.8m (5"/2'8")

Sail Area 9.8sq.m (105sq.ft)

Hull Weight 60kg (132lb)

Mast Height 6.00m (19'8")

Max power 7.5kW (10hp)

Oar length 2.75m (9' 0")

Plan Prices USA/Canada

Paper plans US$55.00 + $5 shipping Order now

Optional extra for full size paper patterns $55.00 + $5 shipping (must order plans or already have) Order now

Plan Prices Other Countries

Paper plans US$55 + $15 shipping Order now

Optional extra for full size paper patterns $55.00 + $15 shipping (must order plans or already have) Order now


This design is drawn in metric and has inch dimensions added.
