DUDLEY DIX YACHT DESIGN

Amateur Projects -
Challenger 13


George Angelomatis is building his Challenger 13 in Palm Coast, Florida. - Page 1
Photo page 2
Return to Amateur Projects


Challenger 13 plywood boat plans

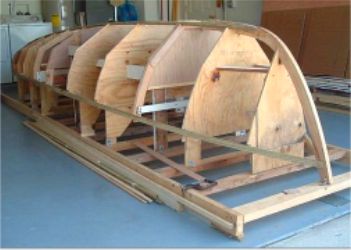

Moulds set up on building stocks, with stem and sheer clamp added. Permanent bulkheads can be seen among the fir plywood temporary formers.

Challenger 13 plywood boat plans
Same stage from aft. George has set up a temporary transom frame to properly locate and support the transom.

Challenger 13 plywood boat plans

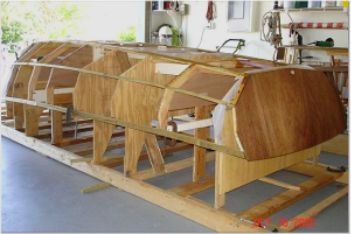

Transom added.

Challenger 13 plywood boat plans
Bottom panel fitted.

Challenger 13 plywood boat plans
First side panel.

Challenger 13 plywood boat plans
Second side panel.

Challenger 13 plywood boat plans
All panels fitted, bottom runners added.

Challenger 13 plywood boat plans

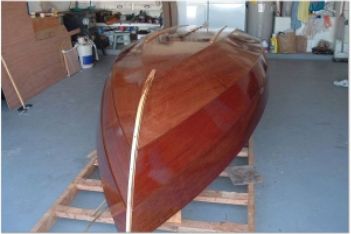

Epoxy coated.
